Maliban Villa @ Vandalur

MALIBAN VILLA@VANDALUR

GET A FREE QUOTE

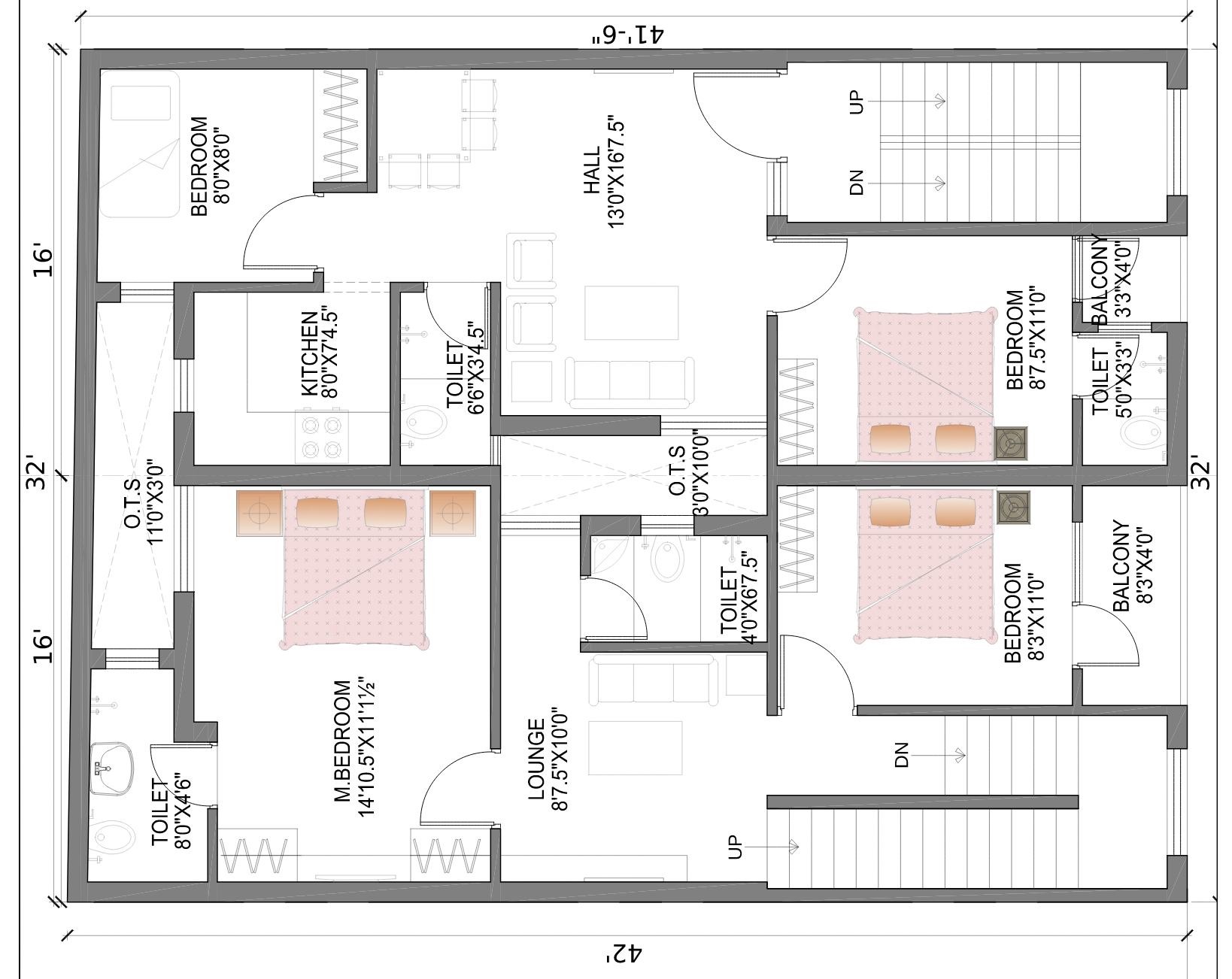

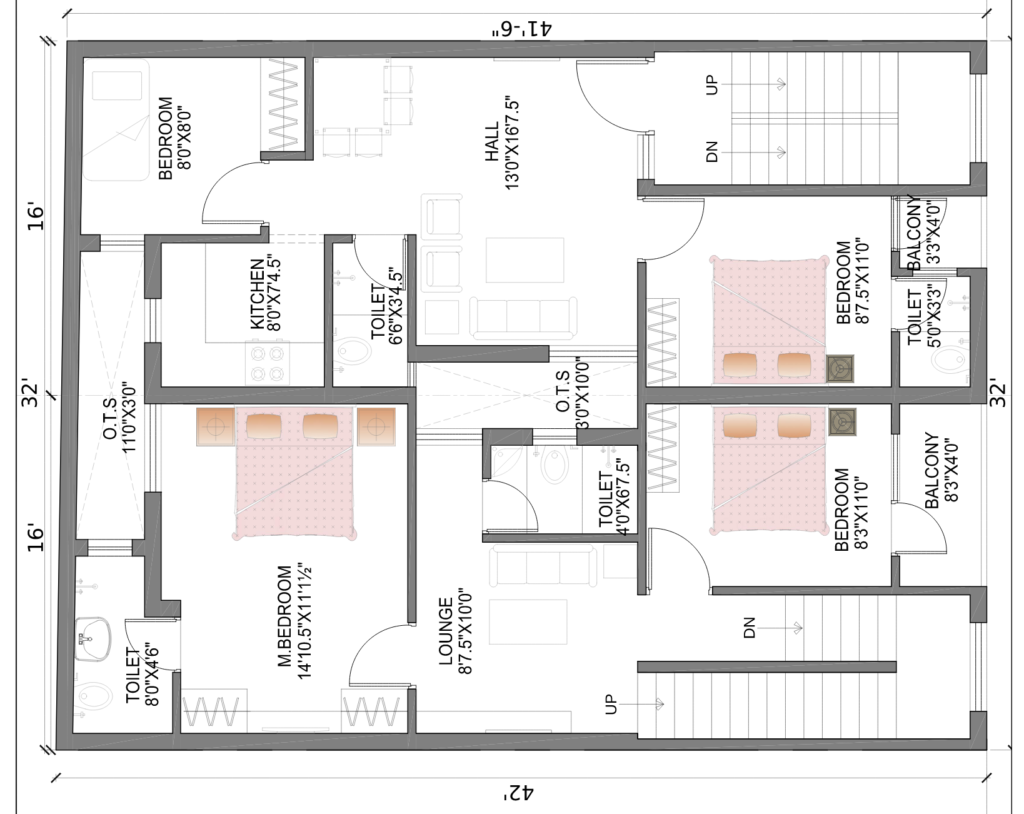

    FLOOR PLAN

    SPECIFICATIONS

    STRUCTURE

    RCC

    framed structure using M-20 concrete

    Plastering

    Sponge for ceiling and Cement brushing for walls

    Brickwork

    Country Bricks.9” thickness for Outer walls and 4.5” thickness for partition walls

    JOINERIES

    Main Door

    Burma Teak Wood or equivalent Frame with Ornamental Solid teak Door of size 7’0” x 3’ 3” with Mortise Lock polished both sides

    Bedroom Doors

    African Teak Wood or equivalent Frame with Flush Door of size 7’0” x 3’0” painted both sides with Cylindrical Lock

    Toilet / Balcony Doors

    PVC door or Chemical Wood or equivalent Frame with Water Proof Plastic Coated Ornamental Flush Door of size 7’0” x 2” 9” painted both sides with handle and latch

    Windows

    African Teak Wood or equivalent Frame and Solid shutter with ornamental tough glass.

    RAILING

    Staircase

    M.S. Railing as per Architect Design

    RAILING

    Balcony

    SS 304 grade Ornamental Handrail

    COUNTER TOP

    Kitchen

    20mm Granite (Galaxy) in Kitchen Counter with 2’–0 Glossy tiles above and Stainless steel Sink with Drain board

    SANITARY/TILES

    Flooring & Skirting

    2’0” x 2’0” Vitrified tiles @ Rs.45/sq.ft. (Hall,Rooms)

    Toilet

    12” x 12” Antiskid ceramic color tiles @ Rs.40/sq.ft .(Except special designs)

    Wall Tile

    18” x 12” Glazed tiles @ Rs.40/sq.ft.(7’0” from floor level)

    Staircase

    Eurocon/Ultra concrete tiles @ Rs.45/sq.ft

    Parking

    1’0” x 1’0” Ornamental paver blocks

    WATER PIPE LINES

    O.H.T. to Toilet pipes

    Any ISI make PVC pipes with 1.5” , 1” and 0.75” diameter for O.H.T. to terrace ,Terrace to toilets and toilets inner distribution respectively)

    Sewerage pipes

    Any ISI make PVC pipes with 4” diameter for toilet to Sewerage tank

    SANITARY FITTINGS

    Closet

    1 No

    2 in 1 Mixer

    1 No

    CP Tap

    1 No

    Health Faucet

    1 No

    Shower

    1 No

    Heater/Geysor provision

    1 No

    Washing Machine provision

    1 No

    Wash basin

    1 No

    ELECTRICAL

    Concealed Wiring

    Finolex or equivalent make

    Size

    1” for main lines and 3/4” for inner lines

    Switch Box

    Metal Box

    Switches

    Wonder Boy

    Living room & all Bed rooms will be provided with one Air conditioner point and with adequate switches & sockets.

    PAINTING

    Internal

    Putty with 2 coat Emulsion paint for ceiling and walls

    External

    2 coat Weather Proof Exterior Emulsion.

    Paint/Texture as per Architect design.
